JON CARIN POMPEII T1

LIMITED EDITION

€359.00

In collaboration with Jon Carin, this limited edition not only maintains all the advanced technical features of the Pompeii T1, but enriches them with unique details and a distinctive design.

PRE-ORDER NOW

Our new echo Limited Edition Jon Carin. Pre-orders open. Product available from November.
Pre-ordering is non-binding.

TUBE SONIC ECHO LTD

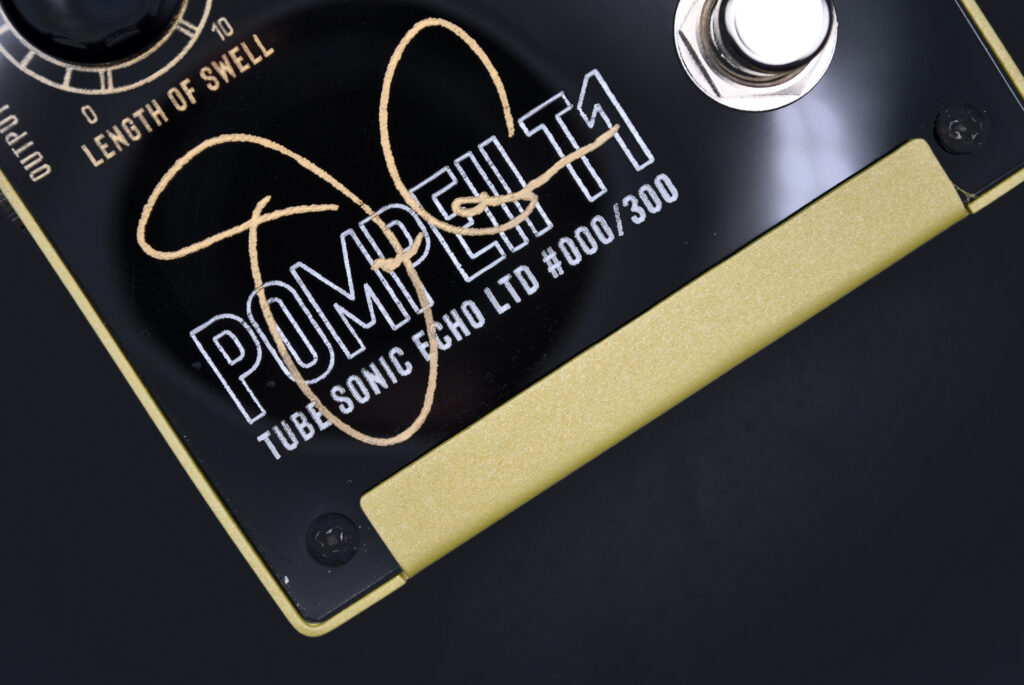

POMPEII T1 LTD is an echo effect designed to replicate the 3rd head filter sound of the POMPEII PE603. It features a full tube pre-amplifier in the signature LE PRISM style, housed in a unique, compact, and elegant chassis. The design recalls the iconic T7E Echorec unit and is available in a limited edition of 300 pieces, signed by Jon Carin. Jon is a dear friend and a great connoisseur of echo sounds. We have shared wonderful moments together since the Roger Waters tour and developed this product in close collaboration. The tone control linked to the echo/rep section allows to control the repetitions frequencies ranging from high to low. The old age modulation control, colors the sound in tune with the chosen delay making it special in arpeggios.

ATTENTION! The peak current of the tube in the preheating phase can exceed 1A (1000mA). This product is equipped with an internal voltage doubler circuit. For this reason it’s necessary to use a stabilized power supply capable of guaranteeing a maximum working voltage of 12VDC with 500mA continuous.

The tone control is inherent only and exclusively to the repetition and therefore these two controls can work together (with Length of Swell) by determining the tone and the length of the repetition. If we use a bright part, with the tone control placed closer to the TREBLE, we will have the feedback part that will come closest to the high frequencies. If we make it darker (near BASS position) the same thing will happen with darker notes.

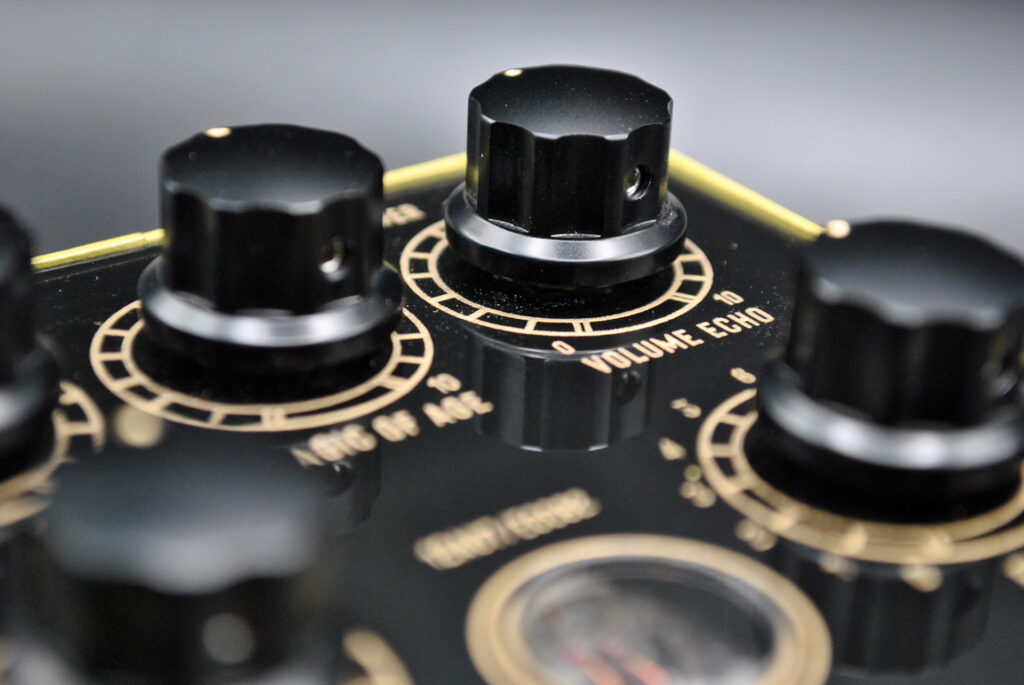

MAGIC OF AGE control is a modulation control and want to recreate what happened on the sounds of the old Echorec Binson when the mechanical part began to degrade. The modulation time is displayed by the flashing of the LED located in the tube.

VOLUME ECHO control is the mix of the effect, or rather how wet to dry effect sound you can adjust. Being internally connected in a parallel way in order to less contaminate the sound, even if we rotate the knob to the maximum, we will never have more than 50% of the sound effect compared to the direct sound.

LENGTH OF SWELL, commonly known as feedback, suggests how many repetitions can occur. If the knob is in position 0 we will have only one repetition. If we turn the knob to have more repetitions, we can go up to infinite.

The ECHO control is the control that limits the delay time. The delay time ranges from a minimum of 87ms to a maximum of 520ms. If we turn the knob to position 4 we will get the time of the head 4 of the Echorec Binson (about 340ms).

SPECIFICATIONS​

DIMENSION: 126mm x 94mm x 42mm (4.9″ x 3.7″ x 1.6″)
WEIGHT: 0.5kg (1.1 lbs)
POWER IN: 12VDC (Negative Tip)
CONSUMPTION: 350mA
INPUT IMPEDANCE: <1M Ohm
OUTPUT IMPEDANCE: <100k Ohm
TUBE TYPE: 12AU7/ECC82
SIGNAL NOISE RATIO: <76db
