SIMPLY MANIAC

NO LONGER AVAILABLE

INFORMATIONS

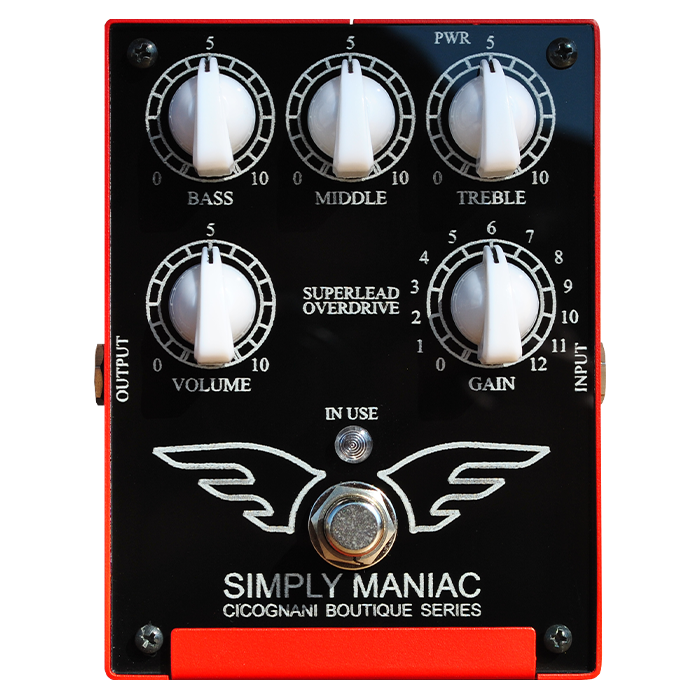

SIMPLY MANIAC is an overdrive pedal designed for “classic hard distortion” ideal for rock asolo. The great dynamics of the signal is generated by a dual power circuit that providing excellent benefits to the touch offering an amazing sound definition. Inspired by the “brown sound” SIMPLY MANIAC ranges between low and high gain levels while maintaining a pleasant sensation typical of historical amplifiers.

The setting and touch response guidelines have been developed together with Tony De Gruttola, a well-known Italian guitarist. Active tone control sculpting sound effectively allowing you to easily find the sound we have in mind.

The input stage with parallel double buffer magically adapts the input impedance is if you enter with the guitar (high impedance) or in series with effects pedal, (low impedance) example, boost or overdrive.

VIDEO

CONTROLS

BASS: Low frequency control
MIDDLE: Middle frequency control
TREBLE: High frequency control
VOLUME: Output level control
GAIN: Gain control
BYPASS: On/Off effect

SPECIFICATIONS

Power In

9 to 12VDC (Negative Tip)

Consumption

Max 40mA to 12VDC

Input Impedance

<1M Ohm

Input Level

Max 500 mV

Bass Frequency

110 Hz

Middle Frequency

720 Hz

Treble Frequency

5000 Hz

Max S/N Ratio

58db

Max Gain

+120db

Weight

0.3kg (0.6 lbs)

Length

120mm (4.7")

Width

94mm (3.7")

Height

45mm (1.770")

GALLERY
