SexyBoost2-BoutiqueSeries

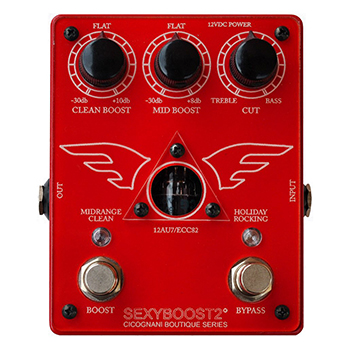

SEXYBOOST2

YOUR ANALOG TUBE BOOST

€245,00

INFORMATIONS

SEXYBOOST2 is an analog tube boost that integrates two important functions: clean signal boost and midrange boost. SEXYBOOST2 functions, in total sound transparency, makes it possible to excel in its features both in “front-preamp” and “post-preamp” use, always being excellent in all two modes of use. It’s easy to use and the frequency filters are calibrated for the best performance sounds. One of the peculiarities of the “MID BOOST” is to increase the medium frequencies and at the same time attenuate the super high ones (Mosquito). This type of boost is very suitable for soloists as it allows you to be very presence without increase the volume level in a high way. It’s also very interesting to boost an overdrive in order to obtain a powerful and fast crunch. The valve plays an important role in ensuring incredible headroom.

The pedal uses quality materials and is equipped with two switches: The first is a classic stable true-bypass necessary to activate and deactivate; The second allows you to choose the type of “boost” between clean (transparent) and midrange increase.

We recommend using power supplies that guarantee a good starting current. The valve in the moment of preheating needs an adequate current peak. The power supply is well “low noise” and “stabilized” to ensure the best characteristics of the product.

The SEXYBOOST2 is equipped with an internal voltage doubler circuit. For this reason it’s necessary to use a stabilized power supply capable of guaranteeing a maximum working voltage of 12VDC.

VIDEO

CONTROLS

CLEAN BOOST: Full range volume
MID BOOST: Mid boost volume
CUT: Passive tone control
TUBE TYPE: 12AU7/ECC82
BOOST: Selectable Mid Boost/Clean Boost
BYPASS: On/Off effect

SPECIFICATIONS

Power In

12VDC (Negative Tip)

Consumption

Max 250mA

Input Impedance

<1M Ohm

Input Level

Max 1Vpp

Clean Boost Level

Max +8db

Middle Boost Level

Max +8db

Band Pass Frequency

250-5000Hz

Tone Level

-6db

Tone Filter

4500Hz

Max S/N Ratio

58db

Tube

12AU7/ECC82

Weight

0.3kg (0.6 lbs)

Length

120mm (4.7")

Width

94mm (3.7")

Height

45mm (1.770")
