Pompeii-T1-TimelessSeries

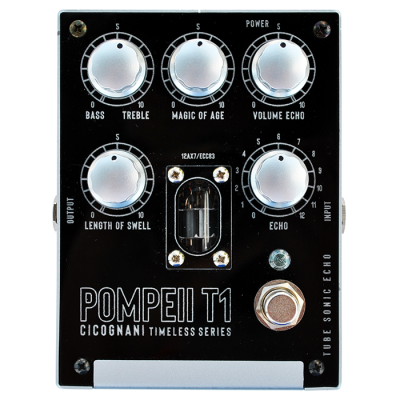

POMPEII T1

TUBE SONIC ECHO

€329,00

INFORMATIONS

POMPEII T1 is an echo effect created to recive the 3rd and 4th head filters of the sonority of POMPEII PE603. Totally re-engineered to make it more suitable for today’s needs. It’s designed with a full tube pre-amplifier and equipped with a new compact and elegant chassis. POMPEII T1 is equipped with an analogue tube preamplifier buffered at the first and second gain stage in order to preserve the maximum linearity and sound quality.

It offers a different way of conceiving echo effects. A lot of time was spent developing the best tube pre-amp, feedback and tone circuits; as a result, the interaction between the feedback and the tone controls can create the most beautiful sounds carpet.

What to expect from POMPEII T1?

Like POMPEII PE603 puts you immediately at ease following your touch like a shadow; repetitions come very naturally by rolling out unique musical carpets. Tone control, linked to the echo/rep section, allows to control the repetitions frequencies ranging from high to low. In addition the old age modulation control colors the sound in tune with the chosen delay making it special in arpeggios.

The TIMELESS SERIES is equipped with an internal voltage doubler circuit. For this reason it’s necessary to use a stabilized power supply capable of guaranteeing a maximum working voltage of 12VDC with 500mA continuous.

The tube preamplifier has a passive parallel mixing stage where, thanks to a maximum mixing effect of 50% between Dry / Wet, the contamination of the digital delay signal part is really minimal.

Like all the “TIMELESS SERIES” is equipped with true bypass switches in order to guarantee the maximum transparency of the bypass signal and a hi quality tube, 12AX7/ECC83 medium gain type.

DESIGN: We have designed a new circuit around an innovative, compact, practical and robust chassis. The hand drawn pcb integrates a voltage booster stage able to the valve to ensure a greater signal dynamics.

QUALITY: Quality is very important for us. For this reason we continue to use high quality components; no internal parts in SMD technique; switches and jack gold connectors built in Italy to guarantee a longer life.

VIDEO

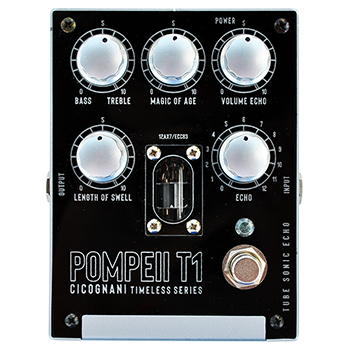

CONTROLS

BASS/TREBLE: Echo tone control
MAGIC OF AGE: Modulation
VOLUME ECHO: Volume level echo
LENGTH OF SWELL: Feedback
ECHO: Time control
TUBE TYPE: 12AX7/ECC83
BYPASS: On/Off effect with feedback reset

SPECIFICATIONS

Power In

12VDC (Negative Tip)

Consumption

350mA

Input Impedance

<1M Ohm

Input Level

0.5Vpp

Effect Mix Level

Parallel MAX 50%

Out Impedance

<100K Ohm

Out Level

0db max 1Vpp

Bandwidth

10 to 65Khz

Delay Time

From 87mS to 520mS

Tube Type

12AX7 medium Gain

Signal Noise Ratio

<76db

Weight

0.5kg (1.1 lbs)

Length

126mm (4.9")

Width

94mm (3.7")

Height

42mm (1.6")

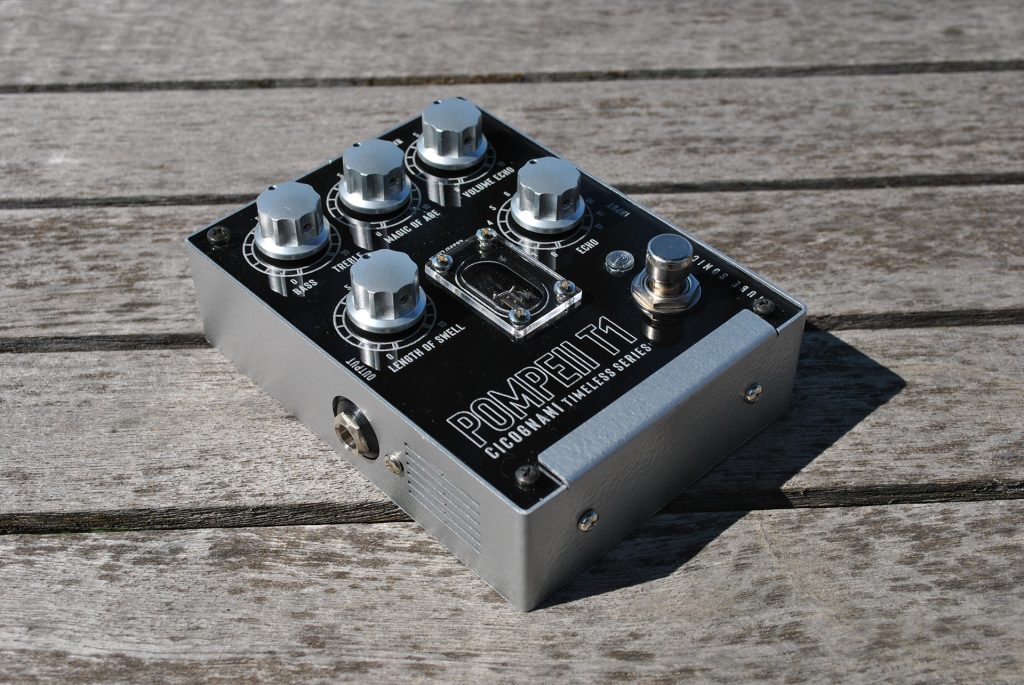

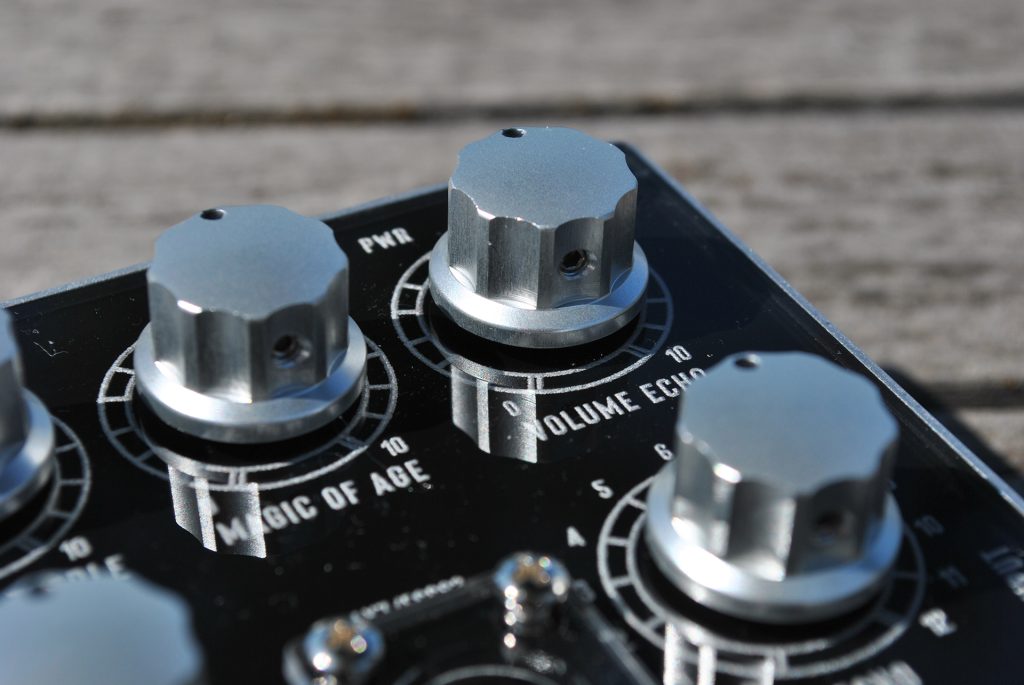

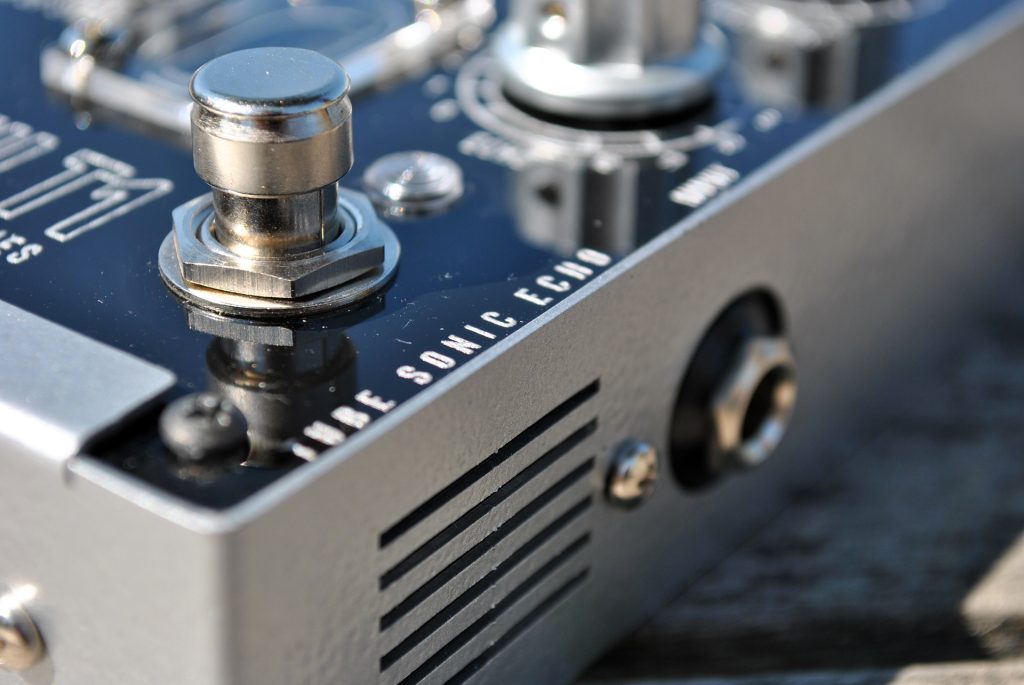

GALLERY
